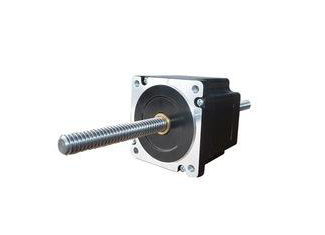

主要用途：醫療設備、半導體設備、閥門控制、X-Y工作平臺、手持式儀器 Applications: medical equipment、semiconductor handling、Valve control, X-Y tables、 hand held instruments 機身長度范圍:50-80mm Length range: 50-80mm
基本性能
精度Accuracy | 步距角Step angle | ±5% |
電阻Resistance | ±10% | |
電感Inductance | ±20% | |
絕緣等級Insulation class | B | |
工作制Duty type | S1 | |
介電強度Dielectrical strength | 500 VAC/1 KHz/1 mA/1 s | |
絕緣電阻Insulation resistance | 100 MΩ/500V DC | |
技術數據
| 型號Model | 步距角Step Angle(Deg) | 電壓Voltage(V) | 電流Current(A) | 電阻Resistance(Ω) | 絲桿直徑Screw diameter(mm) | 絲桿導程Screw lead(mm) | 絲桿長度?Screw length(mm) | 機身長Length(mm) | 重量Weight(Kg) | 資料下載 |
|---|---|---|---|---|---|---|---|---|---|---|
| 57ZD34L200-N2E-50 | 1.8 | 3 | 2 | 1.5 | 10 | 2 | 50 | 51 | 0.85 |  |
| 57ZD34L200-N6E-100 | 1.8 | 3 | 2 | 1.5 | 10 | 6 | 100 | 51 | 0.85 | |
| 57ZD84L300-N2F-100 | 1.8 | 3 | 3 | 1.0 | 10 | 2 | 100 | 76 | 1.0 | |
| 57ZD54L280-N8F-120 | 1.8 | 2.52 | 2.8 | 0.9 | 10 | 8 | 120 | 56 | 0.8 | |
| 57ZD54L280-Q10B-300 | 1.8 | 2.52 | 2.8 | 1 | 12 | 10 | 300 | 56 | 0.8 | |
| 57ZD54L280-Q10B-390S | 1.8 | 2.52 | 2.8 | 1 | 12 | 10 | 390 | 96 | 0.8 | |
| 57ZD84L300-Q2E-700 | 1.8 | 3.6 | 3 | 1.2 | 12 | 2 | 700 | 76 | |
● 機械尺寸Dimensions
● 接線圖Wiring Diagram
